[.75deg Sideways]

I've been building this in my garage for the past 11 months, built virtually entirely by myself
HR31 Passage GT
Factory options:
Rb20det redtop NICS
Sunroof
HICAS 4WAS
Longnose R200 LSD
Electronic suspension
Electric windows
Electric fold-in mirrors
GT Autospoiler
Automatic windscreen wipers
Automatic headlights
4way speakers and 6 stacker cassette player
Climate control AC
Rear windscreen wiper
IRS
Powersteering
4spd Auto

Mods:
Engine, induction, Driveline, ECU, Cooling & Fuel system:
S2 Rb25det with VCT
Trust TD06 20g turbo *completely overhauled by myself*
Trust Heatshield
Trust High-mount, tuned length exhaust Manifold
Trust 50mm external wastegate (plumbed back into exhaust)
Greddy Plenum
Q45 90mm throttle body
Z32 AFM
Splitfire DIS-005 coilpacks
NGK-R platinium spark plugs
Apexi Power FC
Apexi AVC-R boost controller
Apexi Super Intake
Greddy Type RS recirculating BOV
Nismo low temp thermostat
rb25 5spd gearbox
Os Giken Triple plate clutch and lightened flyweel
Nismo clutch pivot
modified xmember
single piece tailshaft
740cc Injectors
Bosch 040 Fuelpump
2ltr surge tank
Sard Adjustable Fuel Reg
3" exhaust
3" hi'flo catalytic convertor (560cfm)
Kakimoto Muffler
Modified 600x330x105mm intercooler
Custom intercooler piping (extremely short)
Earls 34 row oil cooler
Earls oil thermostat
Earls filter relocation kit
Apexi 1.3bar radiator cap
Full river 440cc dry cell battery
Earthing kit



Suspension, Brakes, Diff:
S13 Tein Super Drift coilovers (2 step height, camber & 16pt damper adjustable, 10kg front & 8kg rear spring rate)
S13 Hubs & knuckles
S13 LCA's
R32 Tierod & rack ends
3rds Rosejointed adjustable castor rods (+6 castor)
R33 front Sumitomo 4 piston calipers and 296mm x 30mm rotors *Smoothed & freshly painted 1200f brembo gold and rebuilt*
R32 rear Sumitomo 2 piston calipers and HR31 ventilated rotors
Endless competition racing pads
Z31 non hicas IRS sub-frame/crade
HR31 GTS 4.39 factory mechanical 2way LSD


Exterior
Custom metallic "gunmetal" grey/white paint scheme
R31house front lip
R31house style sideskirts
R31house style rear underskirt
SSR Professor SP1 18x9" & 18x10" +24 wheels

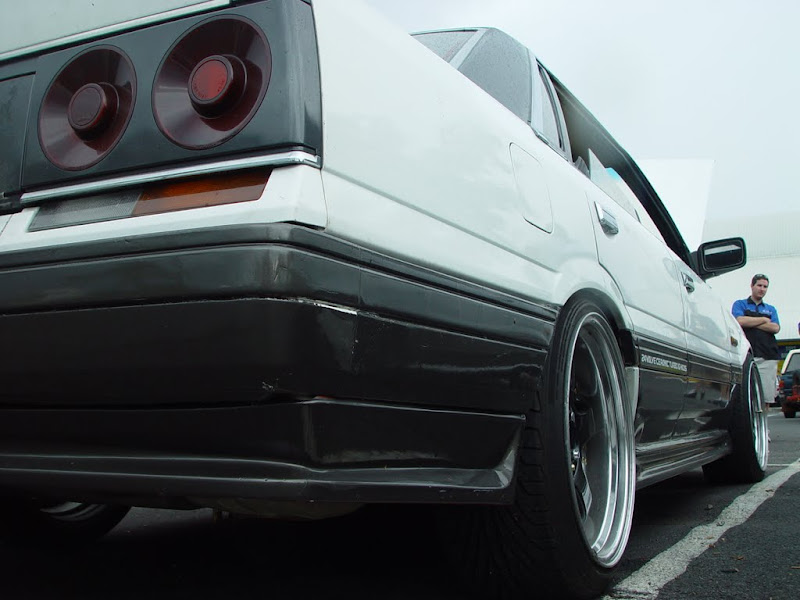

S1 Passage "afterburner" taillights and garnish

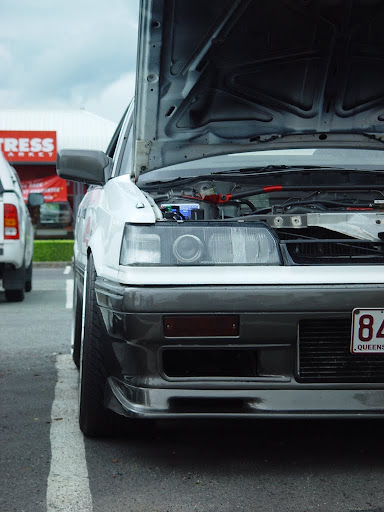

Projector Headlights
4300k HID kit
GTS grill
s3 bonnet
(also have a passage grill and bonnet with a Uras bonnet vent)



Interior
Bride Zeta fixed back(drivers side) seat & bride seat rail
Bride Brix Reclining (passanger side) seat & Bride Seat rail
Sabelt 4pt harness's
Sparco R345 90mm deep dish steering wheel
Apexi turbo timer
Apexi EL boost gauge

Plans:
Full cage, deciding between an 8 point or a 14 point depending on finances
Full respray in a Pearl white metallic over "custom gunmetal" two tone. (paint bare interior, cage, engine bay etc)
Bride seats & door cards retrimmed
Spare rb25 block rebuilt with a fresh r33 rb26 crank, 26dett I-beam rods, 87mm pistons, ARP Grudgeon pins etc.
Spare rb25 head rebuilt with tomei valve springs, .20thou oversized valves, ARP head studs, cams *lift and duration to be decided
Garrett GT3082r turbo
6 boost manifold

These pics are a little out of date, i'll probally take some more once the car's done.

Attached thumbnail(s)

•

This post has been edited by .75deg Sideways: 24 December 2009 - 09:24 PM

[Chris!!]

very nice, do you know what it owes you? i wouldnt mind building a 31 as a project car

[.75deg Sideways]

Chris!!, on 26 October 2009 - 10:00 PM, said:

very nice, do you know what it owes you? i wouldnt mind building a 31 as a project car

I got the bare shell pretty cheap, but I don't really want to think what it owes me, you just have to look at the costs of the mods and it adds up very quickly

[.75deg Sideways]

It's on the road bitches. 1.2 bar likes to blow silicone joins

[_Lucas]

Holy shit, more pics of this man.. f**king mint

[.75deg Sideways]

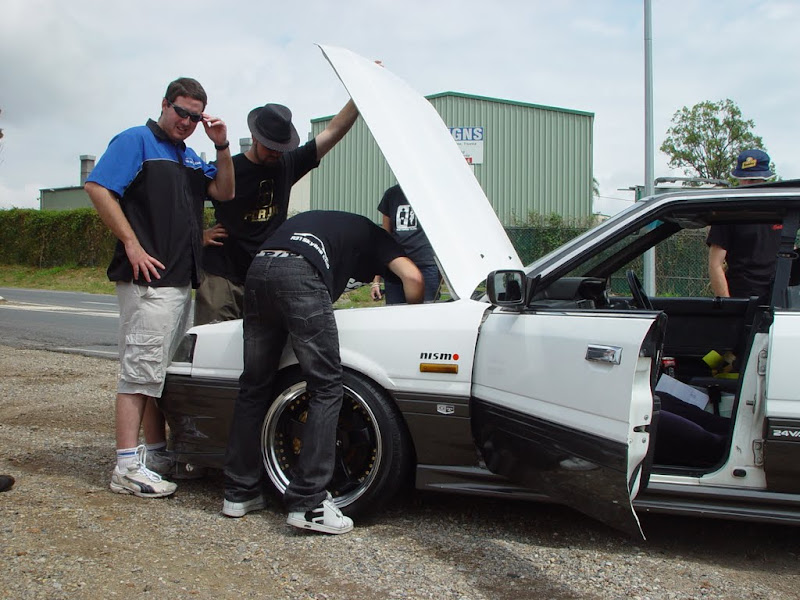

More pics you say... I've got a couple more I guess These are some older pics before it was registered

This post has been edited by .75deg Sideways: 28 December 2009 - 05:53 PM

[.75deg Sideways]

How I bought the car

[.75deg Sideways]

Good news, I just found out that the microprocessor in my Apexi Power FC is stuffed so i'm up for a new one.

So I went for a de-stress drive through the hills in the HR. I feel a bit better now, but 1.2bar does that.

[Matty 31]

i heart this car seb



gives me motivation each time i see it

[Ryousuke]

hey mate nice car lemme say. just wondering if you kept your standard ecu? im having real trouble hunting down an NICS one atm. thanks!

[Diehard]

Thats one nice R31, love the subtle kit on it

[97dayz]

S2 RB25det

[dunn]

amazing ride mate soooo jealous
